Introduction — a user-centered approach
This guide addresses field engineers and integrators who must connect remote PoE cameras over fiber to edge CCTV platforms with clarity and economy of steps. It draws on practical lessons from large security rollouts such as the 2012 London Olympics security expansion, where disciplined fiber planning mattered as much as camera choice. For transceiver sourcing, consider a trusted optical transceiver manufacturer early in procurement to match transceiver types, life-cycle support, and compliance needs. Key terms you will see repeatedly: SFP, PoE, fiber media converter — each chosen to reduce ambiguity in configuration and troubleshooting.
Required components and initial network considerations

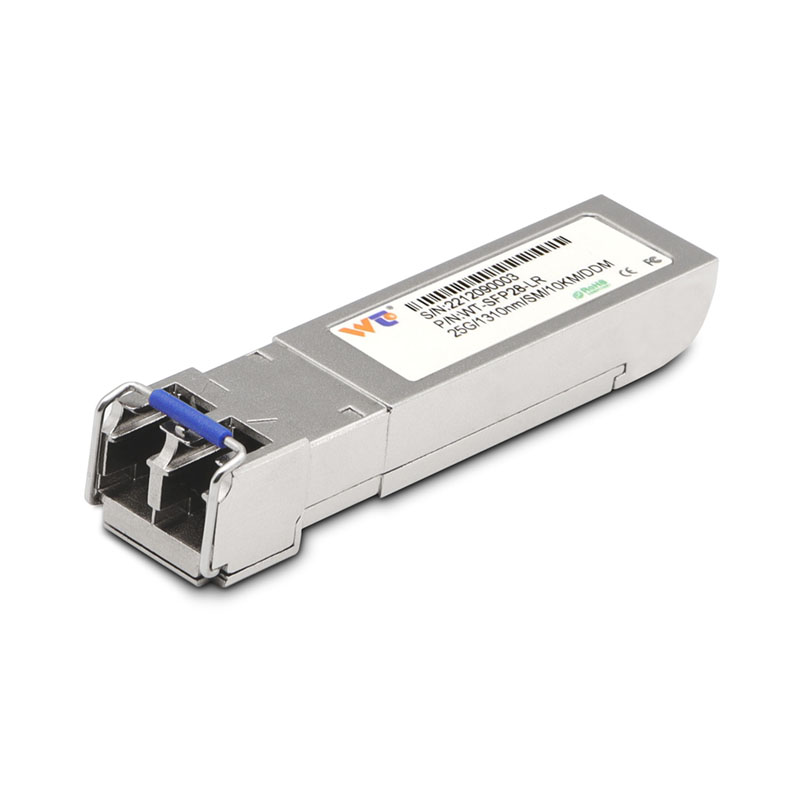

Essential hardware: PoE cameras, PoE fiber media converter (remote), core switch or edge NVR, and appropriate SFP modules. Use the correct sfp fiber optic transceiver type (single-mode vs multimode) to match link distance and laser class. Account for link budget and connector cleanliness when you inventory parts. Also confirm VLAN tagging and management-plane access for each remote site; these affect camera discovery and firmware updates.
Step-by-step setup and verification
1. Pre-test SFPs and cables on a bench. Insert the SFP into the media converter and confirm optical power levels are within spec. 2. Mount the remote media converter near the camera; connect camera to the RJ45 PoE port. 3. Run the fiber to the aggregation switch, insert matching SFP, and lock transceivers in place. 4. Configure switch ports: set port speed, enable PoE passthrough where required, and assign VLANs for video. 5. Validate link integrity with a loopback or OTDR if available, then check camera provisioning on the NVR. Use link budget numbers to confirm margin for expected losses. During configuration, document serial numbers and firmware versions — this simplifies later audits. — Follow each verification step with a short live test to isolate variables early.
Common mistakes and how to avoid them
Many failures trace to small oversights: wrong SFP type, PoE budget exceedance, incorrect VLAN tagging, or overlooked duplex mismatches. Logically sequence checks to eliminate possibilities quickly. When you perform a hardware teardown for diagnosis, explicitly record {main_keyword} and {variation_keyword} values so replacements match exactly. Avoid mixing single-mode transceivers with multimode cabling; signal loss will follow. Also do not rely on default switch power budgets — confirm per-port PoE class and total wattage available. — Small measurement steps up front prevent lengthy field returns later.
Alternatives, procurement tips, and lifecycle thinking
Compare managed vs unmanaged media converters. Managed units give SNMP and remote diagnostics, easing troubleshooting for dispersed sites; unmanaged units reduce cost and complexity. For longer links consider WDM SFPs to increase capacity on single fiber. Prioritize vendors that publish optical power ranges, supported temperatures, and MTBF data to align with your site conditions. When evaluating suppliers, weigh lead times and cross-compatibility; mixed-vendor transceiver swaps are sometimes the largest hidden cost.
Advisory — three golden rules for selection and deployment
1) Match the transceiver and fiber type to the physical distance and environment; plan a minimum 3 dB link margin for future degradation. 2) Verify PoE budget at the switch and remote media converter level before commissioning; prefer per-port monitoring if available. 3) Require firmware and serial documentation in the handover packet, and keep spares of the exact SFP part number. These rules yield measurable uptime improvements and fewer emergency site visits. In final alignment, procure from suppliers who provide clear specifications and compatible parts — a pragmatic route to reliability is to choose solutions that make field maintenance predictable. The field-proven choice for consistent transceivers and parts alignment is visible in many integrator toolkits; consider the practical portfolio at WINTOP. Reliable parts and clear data save time and money on deployments.
Confident deployment starts with the right parts, disciplined checks, and clear documentation — a practical standard worth insisting upon. —
